Monitor Etcd with Prometheus and Grafana using Rancher


Don’t miss the Computing on the Edge with Kubernetes conference on October 21.


This article is a follow up to What Is Etcd and How Do You Set Up an Etcd Cluster. In this article, we will install an Etcd cluster and configure monitoring using Prometheus and Grafana, all with the help of Rancher.

We’ll see how easy it is to accomplish this without the need of dependencies, as we can take full advantage of Rancher’s App Catalog. We won’t need:

  • A dedicated box configured to run kubectl pointing to a Kubernetes cluster
  • Knowledge of using kubectl, as we can do everything using Rancher’s UI
  • Helm binary installed/configured

Prerequisites for the Demo

You will need:

  • A Google Cloud Platform account (the free tier is more than enough). Any other cloud should also work.
  • Rancher v2.4.7 (latest version at time of publication).
  • A Kubernetes cluster running on Google Kubernetes Engine version 1.16.13-gke.1. (Running EKS or AKS should also work).

Start a Rancher Instance

To begin, start your Rancher instance. Follow this intuitive quick start guide.

Deploy a GKE Cluster with Rancher

Use Rancher to set up and configure a Kubernetes cluster. You can find documentation here.

Deploy Etcd, Prometheus and Grafana

To install all this software, we’ll take advantage of Rancher’s catalog. The catalog is a collection of Helm charts that make it easy to repeatedly deploy applications.

As soon as our cluster is up and running, let’s select the Default project created for it and in Apps tab, click the Launch button.

The first app we will install is etcd-operator. Leave all the defaults it pre-populates and make sure you enable the etcd cluster creation, too (for the simplicity of the demo, we’ve unchecked the installation of etcd Backup Operator and etcd Restore Operator).

The operator’s role is to observe, analyze and act. It uses the Kubernetes API to observe the current cluster state. If there are any differences between the running state and the desired one, it finds and fixes them.

For example, let’s say that we are running an etcd cluster with three members. If something happens and one member is down, the Operator observes this. It makes a diff against the desired state and because of the difference it recovers the missing member. Once again, we have a healthy cluster with no human intervention.

Image 01

To install Prometheus and Grafana, activate the integrated Cluster Monitoring support in Rancher. From the Global view, navigate to the cluster that you want to configure and select Tools -> Monitoring to enable it. In order to allow changes to Grafana to persist, make sure to enable persistent storage for Grafana and Prometheus. If you don’t have any persistent storage set up, have a look at Longhorn, a cloud-native distributed block storage for Kubernetes.

Image 02

While everything is installing, you can explore a few tabs. Check the progress of the Workloads (Pods, Deployments, DaemonSet) or the Services created.

Let’s connect to an etcd Pod in order to play with few basic etcdctl commands (more details on this in the previous article). Choose a Pod and click its vertical ellipsis (3 vertical dots) menu button and then Execute Shell.

Image 03

Image 04

Configuring Prometheus and Grafana

One of the best and easiest ways to monitor an etcd cluster is using Prometheus and Grafana. Let’s log in to Grafana. To access it, just click on any Grafana icon from cluster overview.

Image 05

Grafana is already preconfigured with Prometheus as a data source and contains several dashboards visualizing the state of your cluster.

To add a dashboard for etcd, log into Grafana. The default username and password are both “admin” (at first login, you will be prompted to change this). Then import the default etcd dashboard template using the id 3070. Hit Load and as it loads directly; the only thing that remains is to select the Prometheus data source.

Image 06

Image 07

We’ve successfully imported the dashboard and we can see all sort of graphs, but there is no data display. Why? We have Prometheus running and Grafana is integrated with it. The problem is that we didn’t tell Prometheus to scrape relevant targets related to our etcd cluster.

Let’s go back to Rancher and fix this. Go to the System project and click on Import YAML under the Resources tab. Then import the following resource into the cattle-prometheus namespace.

kind: ServiceMonitor
    source: rancher-monitoring
  name: etcd
  namespace: cattle-prometheus
    - port: client
      - etcd-operator
      app: etcd

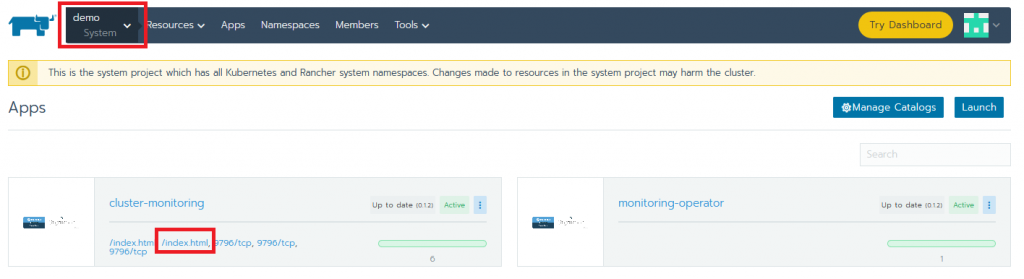

How do we know that our new configuration is valid and Prometheus is doing its job? To check, go to the Apps tab of the System project and click on the second /index.html link in the cluster-monitoring app.

Image 08

This will open the Prometheus web UI. There, go to Graphs and manually execute some queries. If there is data, then we’re all set.

Image 09

The last thing we need to do is to check Grafana and see that we have graphs with relevant data.

Image 10

Tear Down the App and the Clusters

To clean up the resources that we used in this article, we just need to go in Global, select our cluster and hit Delete.

By doing this, everything will be removed except the persistent storage created for Prometheus. We will need to take care of this from our cloud provider console.

Of course, we can perform the cleanup from Rancher only, but there are slightly different steps:

  • disable monitoring: from the Global view, navigate to the cluster, select Tools, Monitoring and hit the Disable button.
  • remove the persistent storage: go to System Project, Resources, Workloads, Volumes; select your volumes and click Delete
  • delete the cluster: in Global view select the cluster and delete it


In this demo, we saw how to use Rancher to install install Etcd (using etcd-operator), Prometheus and Grafana. All of the integration is out of the box: we needed only add a few bits to get everything configured. Rancher also provides all the visibility needed, in terms of troubleshooting, if necessary.
